Vacuum Hot Press Furnace

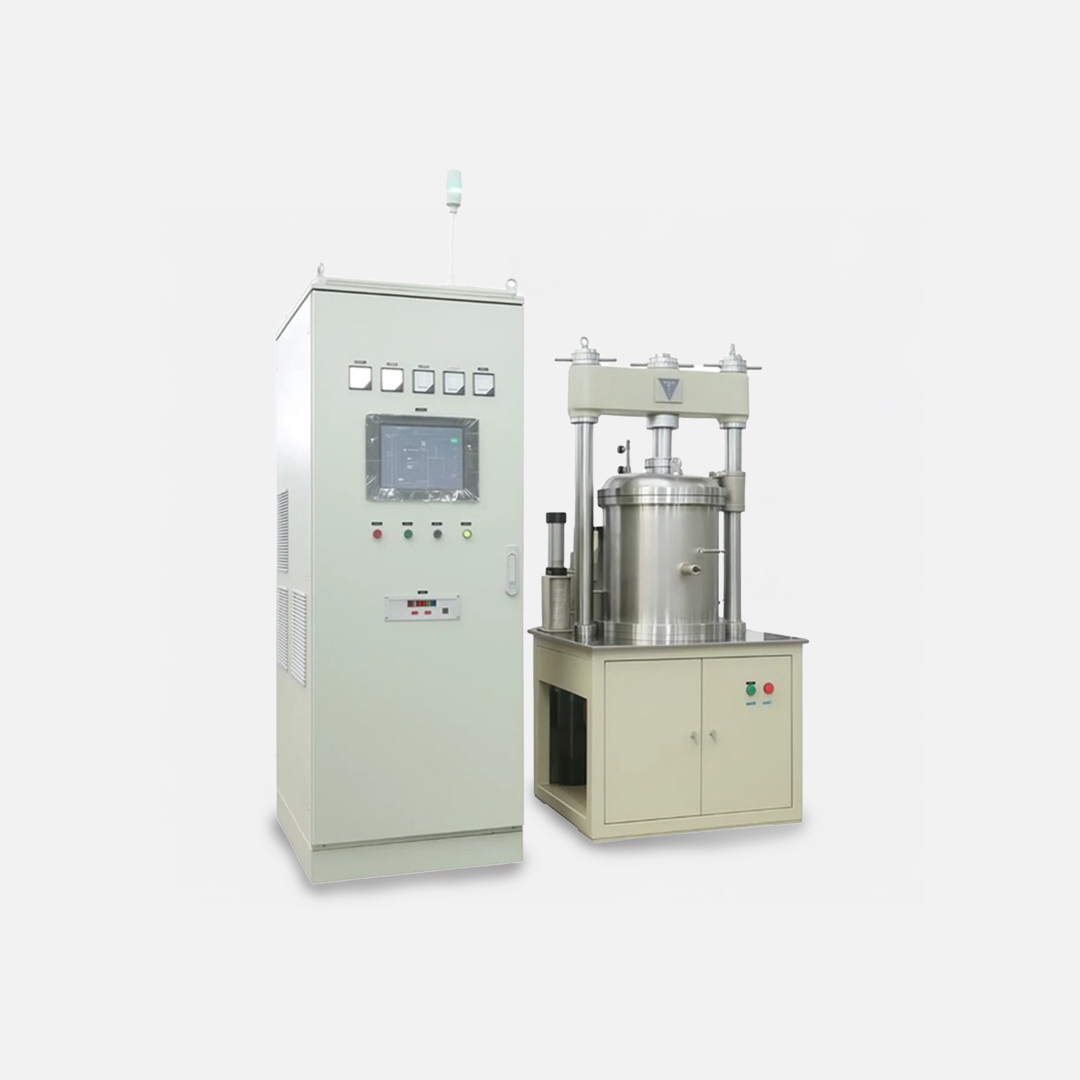

The Ants Vacuum Hot Press Furnace is an advanced system designed to consolidate powders and composite materials under high temperature and uniaxial pressure in a vacuum or inert atmosphere. Ideal for producing hard-to-sinter materials, such as tungsten carbide, advanced ceramics, and metal matrix composites, this system ensures high purity, density, and mechanical performance with minimal post-processing.

Request For Quote

Engineered for Precision

Antsprosys vacuum hot press systems are engineered for microstructural control, near-net shape formation, and reduction of sintering temperature and time. With a front-loading horizontal configuration, the system supports controlled material densification for aerospace, defense, tooling, and electronics sectors.

  1. Hot Zone Dimensions: 10 × 10 × 20 cm
  2. Max Temperature: Up to 1500°C under vacuum or argon
  3. Heating Rate: 2–10°C/min using graphite heating elements
  4. Vacuum Levels: Up to 10⁻⁶ mbar with rotary and diffusion pump integration
  5. Pressing Force: Hydraulic ram (10–15 tons) with high-density graphite punch system
  1. Double-Walled, Water-Cooled Chamber
    Ensures external surface safety and thermal insulation
  2. Digital Pressure Control
    Enables real-time force monitoring and pressure adjustments
  3. PLC + PID Controller
    Microprocessor-based interface for automated and manual operation
  4. Industrial HMI Console
    User-friendly touchscreen with trend visualizations and recipe programming
  5. Integrated Chiller & Vacuum System
    100-liter chiller and advanced sealing mechanisms for stability
  6. Data Management
    Centralized logging, CSV/PDF report generation, and remote connectivity
  1. High-Temperature Sintering of Ceramics & Carbides
  2. Densification of Refractory Powders and Metal Matrix Composites
  3. Thermo-mechanical Testing & Research Prototyping
  4. Near-net Shape Fabrication with Minimal Machining
×
