Hydraulic Presses

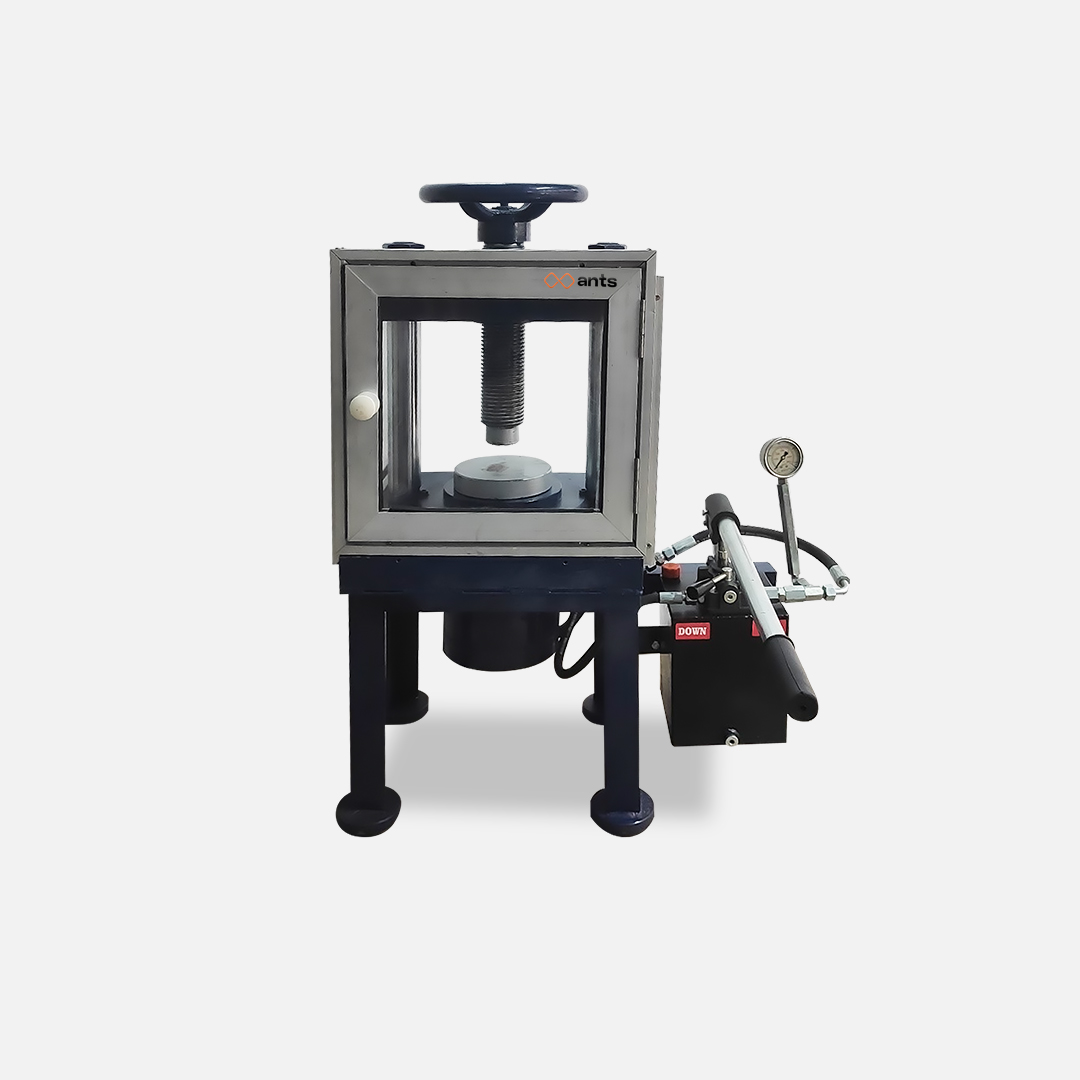

A hydraulic die press is a powerful and precise mechanical system used for compressing, shaping, or forming materials using hydraulic pressure. It operates by applying force through a hydraulic cylinder to a die set, enabling high-pressure forming of metals, polymers, ceramics, and composites. These presses are widely used in laboratories, manufacturing, and material testing environments for tasks such as pelletizing, sample preparation, and component molding. Engineered for durability and accuracy, hydraulic die presses offer customizable force ranges, die sizes, and automation options to suit a wide range of applications.

Request For Quote
  1. High-Pressure Capability: Hydraulic die presses can generate forces ranging from a few tons to over 100 tons, making them suitable for compacting powders into dense pellets or forming robust components. This high-pressure capability ensures uniform density and structural integrity in the final product, which is critical for analytical accuracy and mechanical performance.
  2. Precision Control: Equipped with manual or digital pressure gauges, these presses allow fine-tuned control over the applied force. Advanced models feature programmable pressure profiles and dwell times, ensuring repeatable and consistent results across multiple samples or production batches.
  3. Robust Construction: Built with heavy-duty steel frames and precision-machined platens, hydraulic presses are designed to withstand repeated high-load operations without deformation. This durability ensures long service life and reliable performance even under demanding conditions.
  4. Versatile Die Compatibility: The press can accommodate a wide range of die sets, including cylindrical, rectangular, and custom shapes. This flexibility allows users to prepare samples of various sizes and geometries, supporting diverse research and production needs.
  5. Safety Features: Safety is a core design element, with features such as overload protection, pressure relief valves, and interlock systems that prevent operation unless all safety conditions are met. These features protect both the operator and the equipment during high-pressure operations.
  1. Pelletizing for Spectroscopy: In analytical chemistry, hydraulic presses are used to compress powdered samples into solid pellets for techniques like X-ray fluorescence (XRF) and Fourier-transform infrared spectroscopy (FTIR). The resulting pellets are uniform and free of air gaps, ensuring accurate and reproducible measurements.
  2. Material Testing: Hydraulic presses are used to evaluate the compressive strength and deformation behavior of materials. By applying controlled pressure, researchers can study how materials respond under load, which is essential for quality control and material development.
  3. Component Molding: In small-scale manufacturing or prototyping, the press can be used to mold components from polymers, ceramics, or metal powders. This is particularly useful in research and development settings where custom parts or test samples are needed.
  4. Sample Preparation: For thermal, mechanical, or chemical analysis, samples often need to be compacted into a consistent shape and density. Hydraulic presses ensure that samples are prepared under uniform conditions, improving the reliability of downstream testing.
  5. Sintering & Bonding Support: Some processes require pre-sintering or pressure-assisted bonding of layered materials. A hydraulic press can apply the necessary force to initiate bonding or densification before final heat treatment.
  1. Force Capacity: 1 Ton / 5 Ton / 10 Ton / 20 Ton / 50 Ton / 100 Ton (customizable)
  2. Platen Size: 100 × 100 mm to 300 × 300 mm (based on model)
  3. Maximum Pressure: Up to 700 bar (10,000 psi)
  4. Die Compatibility: Cylindrical, rectangular, and custom die sets
  5. Construction:
  6. Frame: Heavy-duty mild steel or stainless steel
  7. Platen Material: Hardened tool steel
  8. Control System: Manual hydraulic / Digital PID / PLC-based control
  9. Pressure Display: Analog gauge or digital pressure indicator
  10. Cycle Control: Manual or programmable dwell time and pressure ramping
  11. Power Supply: 220V / 50Hz or 110V / 60Hz (optional motorized models)
  12. Safety Features: Overload protection, pressure relief valve, emergency stop, safety interlocks
  13. Mounting: Benchtop or floor-standing models
  14. Optional Features:
  15. Data logging and USB/Ethernet connectivity
  16. Quick-change die holders
  17. Transparent safety shield
  18. Integrated heating platens (for hot pressing)
  1. Force Range: Available in models from 1 ton to over 100 tons, depending on the application.
  2. Die Set Options: Compatible with standard and custom die sets; quick-change systems available for efficiency.
  3. Automation: Options include motorized pressing, programmable pressure cycles, and automatic release mechanisms.
  4. Digital Monitoring: Integrated sensors and data logging systems allow for real-time monitoring and quality assurance.
  5. Frame Design: Offered in benchtop or floor-standing configurations, with open or enclosed frames for safety and space optimization.
  6. Safety Enhancements: Emergency stop buttons, transparent safety shields, and interlock systems ensure safe operation.
×
