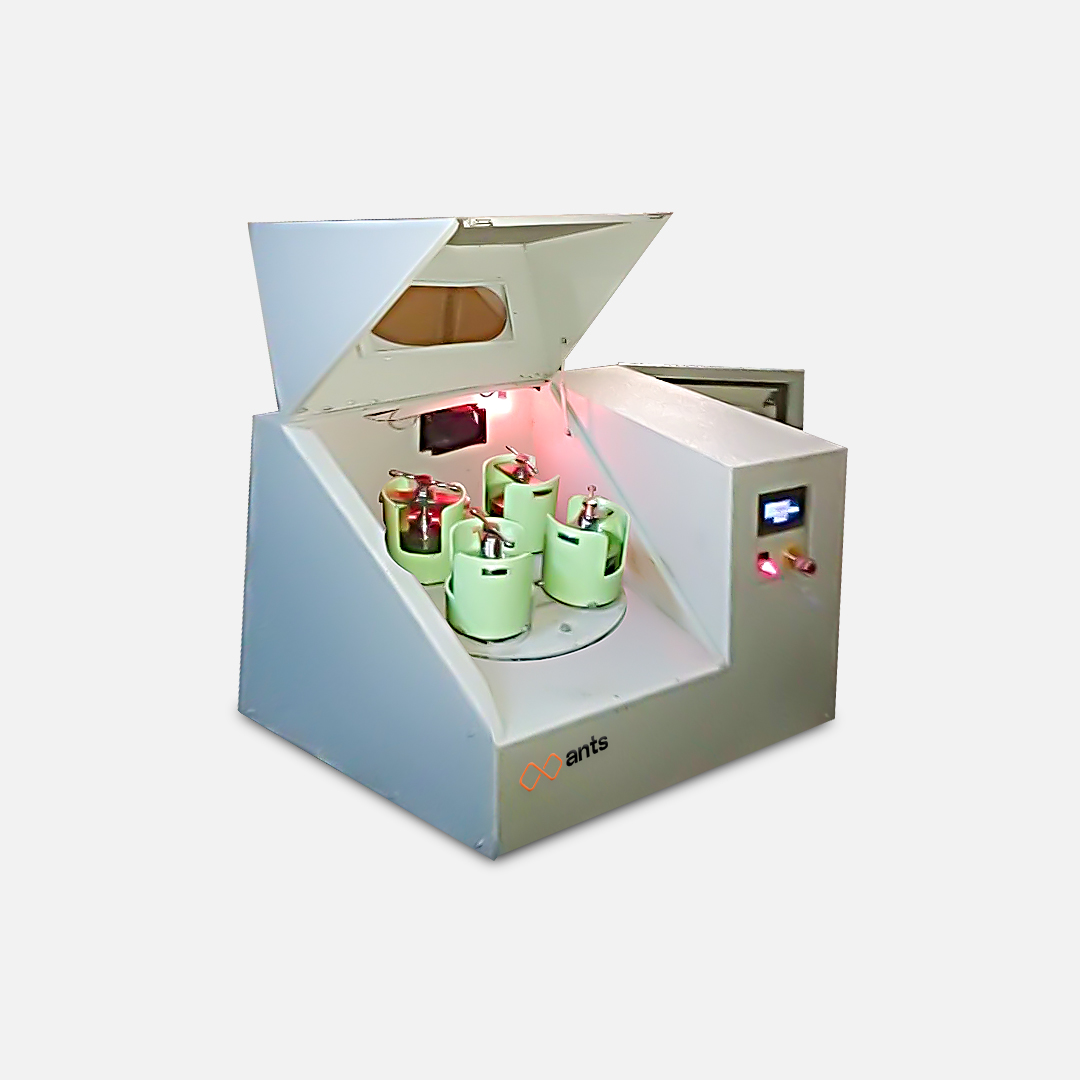

Ball Mill

Ball mill is a mechanical device that grinds solid materials into fine powders or slurries. It has a rotating cylindrical chamber filled with grinding media, usually steel or ceramic balls, that create impact and shear forces on the material. Engineers appreciate ball mills for their straightforward design, scalability, and accuracy in controlling particle size.

They can run in dry or wet modes and can be tailored for batch or continuous processing. Important design factors, such as critical speed, ball-to-powder ratio, and residence time, affect grinding efficiency and final particle size. Ball mills are commonly used in material science, mining, pharmaceuticals, and ceramics. They can also be equipped with cooling, vacuum, or inert gas systems for sensitive applications.

Request For Quote
  1. Efficient Grinding Mechanism: Uses impact and attrition between the balls and the material to achieve fine particle sizes. It works well with brittle, hard, and fibrous materials.
  2. Versatile Operation Modes: Supports both dry and wet grinding. Can operate in batch or continuous mode depending on the need.
  3. Customizable Chamber Design: Available in different sizes and materials (stainless steel, ceramic, rubber-lined) to accommodate various sample types and volumes.
  4. Variable Speed Control: Rotation speed can be adjusted to optimize grinding efficiency and particle size distribution.
  5. Safety and Containment: An enclosed design reduces dust and exposure to hazardous materials. Safety interlocks and covers prevent accidental operation.
  6. Low Maintenance: A simple mechanical design with durable parts ensures a long service life and requires minimal upkeep.
  1. Material Science & Nanotechnology: Used for reducing particle size and homogenising powders, synthesising nanomaterials, and mechanical alloying.
  2. Pharmaceuticals: Grinding active pharmaceutical ingredients (APIs), excipients, and developing formulations.
  3. Mining & Metallurgy: Crushing ores and minerals for extraction and analysis. Commonly used in gold, copper, and iron ore processing.
  4. Chemical Processing: Mixing and grinding chemicals to enhance reactions or for formulation.
  5. Paints & Pigments: Dispersion and size reduction of pigments for consistent color and texture.
  1. Chamber Material: Stainless Steel, Hardened Steel, Tungsten Carbide, Alumina, or Zirconia
  2. Grinding Media: Steel balls, ceramic balls, or tungsten carbide balls (size and material vary by application)
  3. Chamber Volume: Ranges from 0.5 L (lab scale) to several thousand liters (industrial scale)
  4. Rotation Speed: Typically 60 to 300 RPM; variable speed options available
  5. Motor Power: 0.5 HP to over 100 HP depending on size and load
  6. Grinding Mode: Dry or Wet
  7. Control System: Manual or automated with digital timers, speed controllers, and programmable settings
  8. Safety Features: Emergency stop, lid interlocks, vibration damping, and overload protection
  1. Design Considerations: Chamber shape, liner material, and ball size distribution influence grinding efficiency and final particle size.
  2. Operational Flexibility: Can be integrated with cooling jackets, vacuum systems, or inert gas purging for sensitive materials.
  3. Automation & Integration: Works with PLCs, data logging systems, and remote monitoring for process control.
  4. Maintenance & Support: Easy access to internal parts for cleaning and replacing media. Manufacturers provide calibration, training, and service contracts.
×
