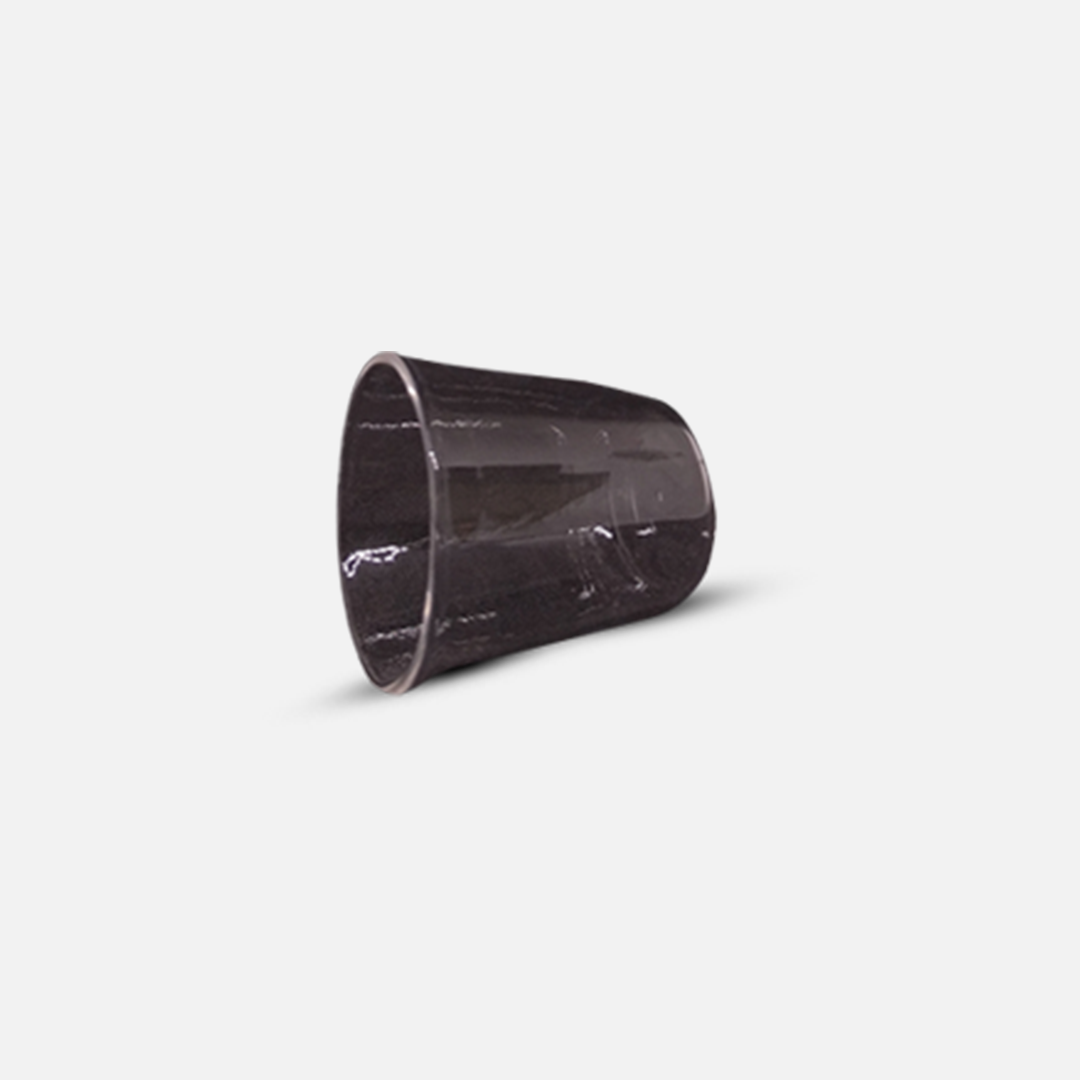

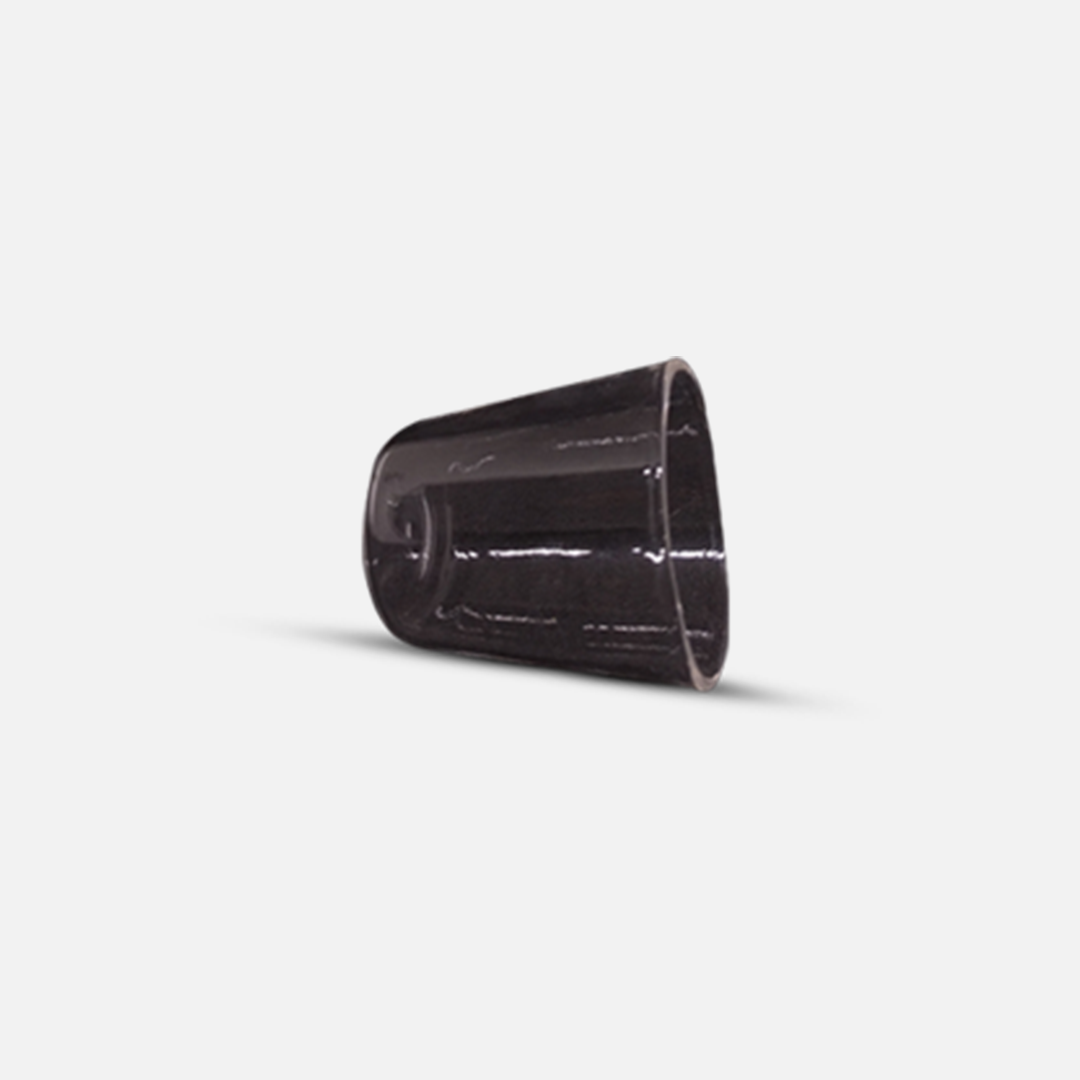

Tall Form Quartz Crucible

SKU N/A Category : Tag

Price Range

500.00688.00

Clear

Processing Time : 3 To 5 Business Days
For Backorders: 2 -3 weeks
Country of Origin: India
Shipping Location: Mumbai Warehouse

Tall Form Quartz Crucible can be transparent or milky white. These quartz crucibles can withstand up to 1100 degree centigrade. It is most important to note that tall form quartz crucible can withstand very high thermal shock (1000 degree centigrade to room temperature). It is obtained through different types of raw materials because that includes natural or synthetic quartz sand. These are highly resistant to thermal shock due to the extremely low coefficient of thermal expansion because they have excellent electrical strength that offers stability under temperature variation.Our range of Tall Form Quartz Crucible is developed in our company by using high purity fused quartz as raw material and fabricating with advanced ceramic technology. Thermal Properties of Tall Form Quartz Crucible
Thermal Conductivity 1.38(W/m°K)
Coefficient Of tThermal Expansion(0~1000 °C) 0.55(10 -6/ °C)
Normal Operating Temperature (Continuous Usage) ~1050 °C
Normal Operating Temperature (Non Continuous Usage) ~1250 °C
Strain Point ~1075 °C
Annealing Point ~1180 °C
Hot Pressing Temperature ~1700 °C - 2100 °C
Devitrification Temperature  Starting at ~1000 ° C. high temperature accelerates Devitrification, especially with surface contaminants such as alkaline solution, salts and vapours.
Physical Properties of  Tall Form Quartz Crucible
Units of Measure Value
Density gm/cc (lb/ft3) 2.2
Porosity %(%) 0
Tensible Strength 106 Pa 48.3
Young's Modulus 106 Pa 71.7
Hardness kg/mm2 600
Thermal Conductivity W/m°K 1.38
Coefficient of Thermal Expansion 10-6/°C 0.55
Specific Heat J/Kg°K 740
Dieletric Strength Ac-kv/mm (volts/mil)  30
Dieletric Constant @1MHz 3.82
Index of refraction @ 587.6nm -- 1.4585
Quartz Low Form Crucible DATASHEET (PDF – 173 KB)     BROCHURE (PDF – 2.8 MB)
