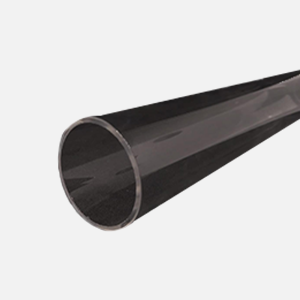

Quartz Tube 1000 MM
Price Range
₹1,600.00 – ₹41,233.00
Processing Time :Â 3 To 5 Business Days
For Backorders:Â 2 -3 weeks
Country of Origin:Â India
Shipping Location:Â Mumbai Warehouse
Description
Additional Information
Reviews
Description
Imported Quartz Tube can be transparent or milky white. Transparent quartz tubes can withstand up to 1100 degree centigrade. It is most important to note that Quartz Tubes can withstand very high thermal shock (1000Â degree centigrade to room temperature).
The transparent quartz tube is obtained through different types of raw materials because that includes natural or synthetic quartz sand. These are highly resistant to thermal shock due to the extremely low coefficient of thermal expansion because they have excellent electrical strength that offers stability under temperature variation.
Most noteworthy antsLAB™ Quartz Tube can withstand vacuum up to 10−3 Torr.
First of all, let's dive into the Thermal Properties of Quartz Tube because this is the most important properties to note.
DATASHEET (PDF – 173 KB)  BROCHURE (PDF – 2.8 MB)
Similar Product: Quartz Tube 1200 mm ( 4 mm -15 mm OD)Â
- Thermal Conductivity is 1.38(W/m°K).
- Coefficient Of Thermal Expansion(0~1000 °C) is 0.55(10 -6/ °C).
- Normal Operating Temperature (Continuous Usage) of Quartz Tube is ~1050 °C.
- Normal Operating Temperature (Non-Continuous Usage) is ~1250 °C.
- Strain Point is ~1075 °C.
- Annealing Point is ~1180 °C.
- Hot Pressing Temperature is ~1700 °C - 2100 °C.
- Devitrification Temperature is Starting at ~1000 ° C. high temperature accelerates Devitrification, especially with surface contaminants such as alkaline solution, salts, and vapours.
Units of Measure | Value | |
Density | gm/cc (lb/ft3) | 2.2 |
Porosity | %(%) | 0 |
Tensile Strength | 106Â Pa | 48.3 |
Young's Modulus | 106Â Pa | 71.7 |
Hardness | kg/mm2 | 600 |
Thermal Conductivity | W/m°K | 1.38 |
A coefficient of Thermal Expansion | 10-6/°C | 0.55 |
Specific Heat | J/Kg°K | 740 |
Dielectric Strength | Ac-kV/mm (volts/mil) | Â 30 |
Dielectric Constant | @1MHz | 3.82 |
Index of refraction @ 587.6nm | -- | 1.4585 |
