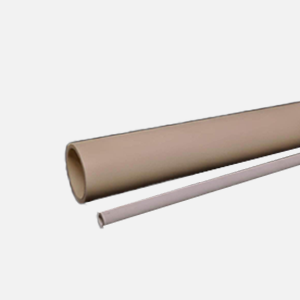

Antslab offers Alumina Tubes with 80% Al2O3. Because high-temperature processes demand reliable components, our Alumina Tubes are most apt. Laboratory and industrial furnace applications up to 1400°C uses Alumina Tubes 80% and provide desired protection against the corrosive atmosphere. Likewise, it also protects the thermocouple sensors against mechanical damages. Following are the properties of Alumina Tubes

1. The high temperature is resistant.
2. Thermal shock resistant.
3. Corrosion resistant.
4. High thermal conductivity.

Chemical Analysis of Alumina Tubes



Constituents	Alumina 80%
Al2O3 Min	80
SiO2 Max	18
Fe2O3 Max	0.3
Na2O Max	1



Physical Properties Alumina Tubes



Constituents	Alumina 80%
Colour	White
Sp.Gr. – gms/cc	3.2
Water Absorption	0
Max Service Term	1450
Gas Permeability	Nil
Hardness R45N	72
Chemical Resistivity	Good
Flexural Strength N/mm2	280
Tensile Strength N/mm2	—
CTE (RT-14000 C) x 10-6 /°C Max.	—

Finally, the values are obtained from standard bars & cubes, Data on other shapes shall differ, the data should not be taken as a specification but for general guidance only. Furthermore, shop a wide variety of Alumina Tubes with 80% Al2O3 from antsLAB™. We offer both ends open type and One end closed type for application up to 1400C.   DATASHEET (PDF – 173 KB) . BROCHURE (PDF – 2.8 MB)
