Hydrogen Gas Safety System – Multi-Layered Protection for High-Temperature Furnaces
Client Objective
To design and implement a hydrogen gas safety system that ensures secure and efficient handling of hydrogen in high-temperature furnace applications, while integrating advanced safety protocols to meet industrial compliance standards.
Our Solution

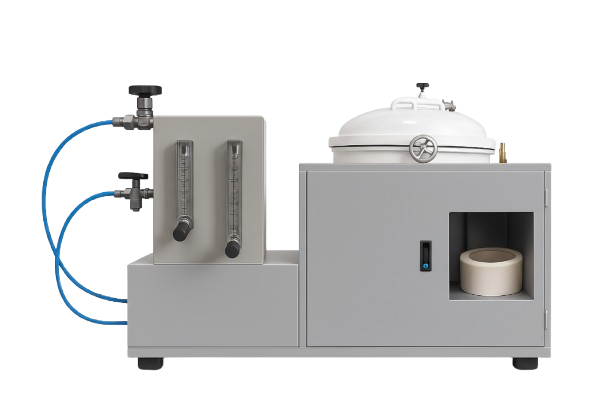

Ants Innovations engineered a Hydrogen Gas Safety System tailored for environments where hydrogen is used at elevated temperatures. This system delivers a comprehensive safety envelope by automating purging, combustion, flow regulation, and critical condition response, ensuring secure operation during hydrogen-based thermal processes.
Integrated Components
- Gas Flow Control Panel: Regulates the inlet and outlet of hydrogen and nitrogen gases, featuring real-time feedback on pressure and temperature.
- Electronic Control Panel: Controls all system functions—including gas flow switching, burner management, and furnace temperature—via embedded controllers and intuitive power switches.
- Hydrogen Gas Burner: Designed for high-temperature operations with thermocouple feedback to monitor and maintain optimal combustion conditions.
Three-Level Safety Protocol
- Temperature-Dependent Hydrogen Entry: Hydrogen introduction is enabled only after the furnace reaches 750°C. Prior to this, nitrogen purging is automatically triggered to eliminate oxygen and prevent flammable mixtures.
- Auto-Ignitor Burn-Off: Any hydrogen exhaust is safely combusted using an auto-ignitor to avoid unburned hydrogen accumulation.
- Pressure Monitoring with Emergency Response: Continuous pressure sensing ensures the furnace chamber remains within a safe operating range. Any deviation activates nitrogen purging and halts hydrogen flow.
Flow Control Features
- Adjustable flow meters for both hydrogen and nitrogen allow operators to fine-tune gas delivery.
- A manual nitrogen purge option offers additional safety control and immediate inert gas introduction when needed.
Automatic Shutdown Mechanism
- If burner temperatures fall below the hydrogen auto-ignition point or if chamber pressure exceeds set thresholds, hydrogen supply is immediately cut and nitrogen flow is activated.
- This prevents unsafe hydrogen buildup and stabilizes the system automatically without operator intervention.
Reliability Testing & Safety Certifications
- All systems undergo leak detection (helium at joints), 24-hour pressure retention checks, electrical continuity, and grounding validation
- Built-in overpressure relief, excess flow protection, and redundant purge pathways ensure fail-safe operation.
Industrial Furnaces
In processes like annealing, sintering, and hydrogen-based heat treatment, where precise gas delivery and real-time safety control are essential.
Research Laboratories
Enables safe experimentation with hydrogen in materials science, energy systems, and chemistry R&D, while mitigating risk through automation and built-in protection systems.
Manufacturing & Process Industries
Ideal for hydrogen-dependent processes in semiconductors, glassmaking, and chemical synthesis. The system ensures compliance, safety, and process integrity in demanding production environments.
Industrial Furnaces
In processes like annealing, sintering, and hydrogen-based heat treatment, where precise gas delivery and real-time safety control are essential.
Research Laboratories
Enables safe experimentation with hydrogen in materials science, energy systems, and chemistry R&D, while mitigating risk through automation and built-in protection systems.
Manufacturing & Process Industries
Ideal for hydrogen-dependent processes in semiconductors, glassmaking, and chemical synthesis. The system ensures compliance, safety, and process integrity in demanding production environments.
Outcome
The Hydrogen Gas Safety System was successfully integrated into client facilities, enabling safe, consistent hydrogen usage in high-temperature operations. It significantly improved operator safety, reduced manual intervention, and provided peace of mind through automated safeguards and system diagnostics.
